iAstroPhoto v. 1.2.1

Focus Module

Interface

(click on the thumbnails to see larger images)

(Note that the interface has changed slightly so the images are out of date)

The Focus Window

The Focus Image Window

Menus

Keyboard Commands


The Focus Window

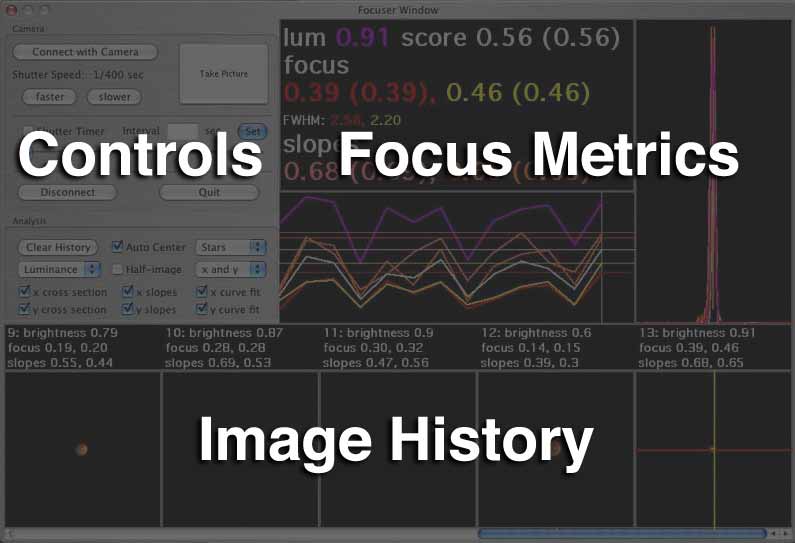

The focuser window is divided into three regions: control, focus metrics and image history.

The controls and Image History regions are interactive, while the Focus Metrics region is not.  The displays of the focus metrics are described in the focus metrics section.

Controls

There are two groups of controls: Camera controls and Analysis controls

Camera Controls

Analysis Controls

When you change some of the analysis controls, the focus metrics of the image history are recomputed so their values are consistent.

Image History

The image history is a scrolling one-dimensional array of extracts from images taken since either the program was started or the history was last cleared.

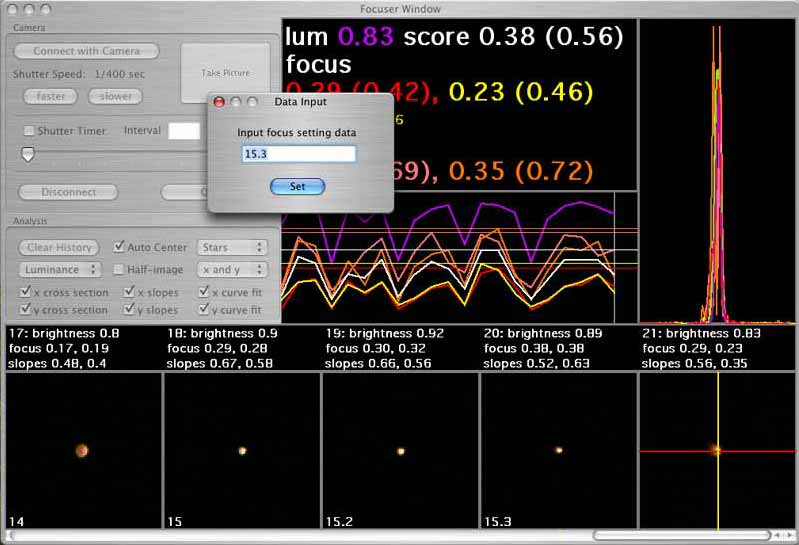

The left-most images are oldest while the newest images are on the right.  When there are more than 5 extracts in the image history the scroll bar appears at the bottom of the image history region.  There are three interaction types with the image history:

Focus Image Window

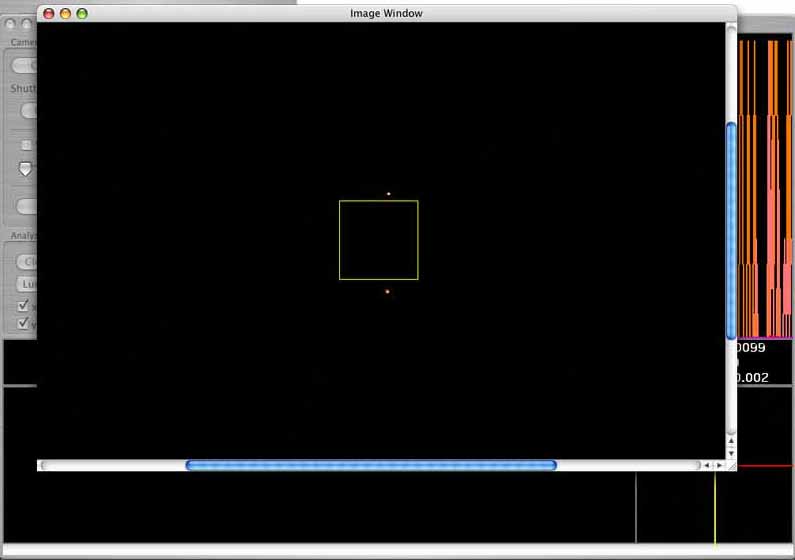

The focus image window appears when pictures are taken and downloaded when the focus window is in front.  The focus image window differs from the standard image window: the focus image window allows you to specify an extract, indicated by the yellow square superimposed on the image.

The focus image window also appears when you click on an image extract in the image history region of the focus window.

You navigate around in a focus image window by either clicking and dragging anywhere in the image or via the scroll bars.  You shift-click on the image to choose a new extract location, in which case the image window disappears.

Menus

iAstroPhoto menu:

Camera menu:

Shutter menu: Allow direct selection of camera shutter speed. NOTE: the software cannot trigger the camera shutter when it is in 'bulb' mode.  When you select bulb mode you take picture from the camera (preferably via a remote control), and these pictures are stored in the camera.

Image menu:

Focuser menu:



Keyboard Commands

These keyboard commands are in effect when the focuser window is in front.  The same keys may have other effects when other windows are in front.


Return to the iAstroPhoto User's Guide
